Skid steer loaders are also known as skid steers, multi-purpose vehicles, and multi-purpose engineering machines. It is a wheel-type special chassis device that uses the speed difference between the two wheels to achieve vehicle steering. It is mainly used in occasions where the job site is small, the floor is uneven, and the job content is frequently changed.
Suitable for infrastructure construction, industrial applications, dock handling, urban streets, houses, barns, barns, airport runways, etc., but also can be used as a large-scale construction machinery auxiliary equipment. There are two types of skid steer loaders: wheeled and tracked.

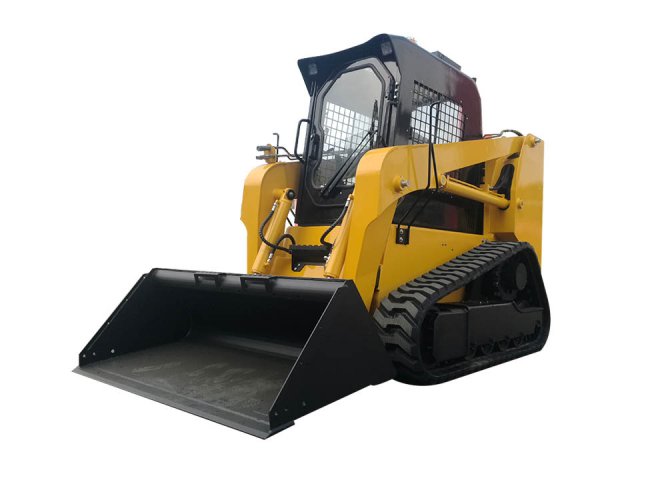

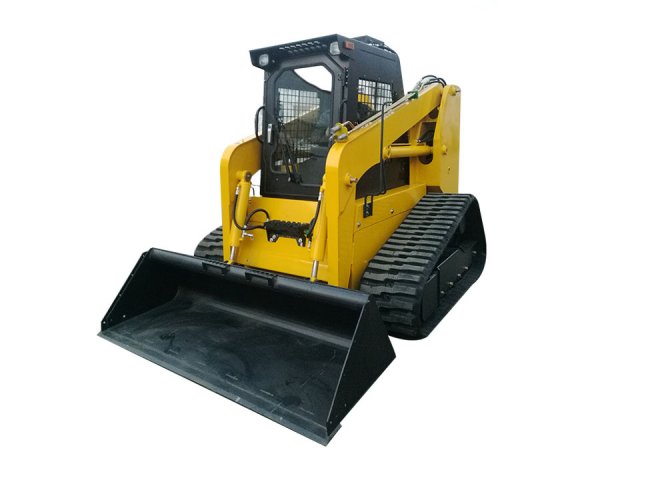

TS50 | |
Rated capacity (kg) | 700 |
Max speed rate (km/h) | 10 |
Hydraulic flow rate (L/Min) | 60 |
Big flow rate | option |
Track size | 300X52.5 |
Engine power (Kw) | 36 |
Diesel oil tank volume (L) | 50 |
Operating weight (kg) | 2800 |
Bucket Volume (m³) | 0.3 |
A | Overall operating height (mm) | 3350 |
B | Height to bucket hinge pin (mm) | 2770 |
C | Height to top of cab (mm) | 2050 |
D | Height to bottom of level bucket(mm) | 2603 |
E | Without bucket length（mm） | 2300 |
F | overall length with bucket(mm) | 2950 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2100 |
I | Dumping reach(mm) | 790 |
J | Rollback o bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 1240 |
M | Ground clearance(mm) | 140 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1064 |
P | Front tuning radius(mm) | 1825 |
Q | Rear tuning radius(mm) | 1264 |
R | Rear axle to bumper (mm) | 594 |
S | Tread width (mm) | 1102 |
T | Width (mm) | 1402 |
U | Bucket width (mm) | 1500 |
