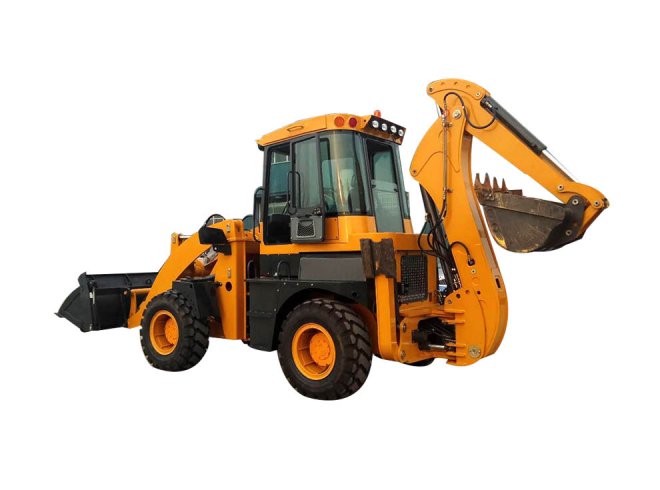

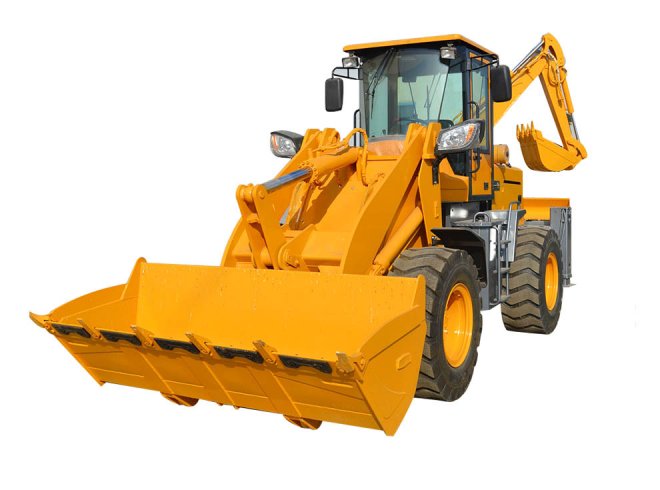

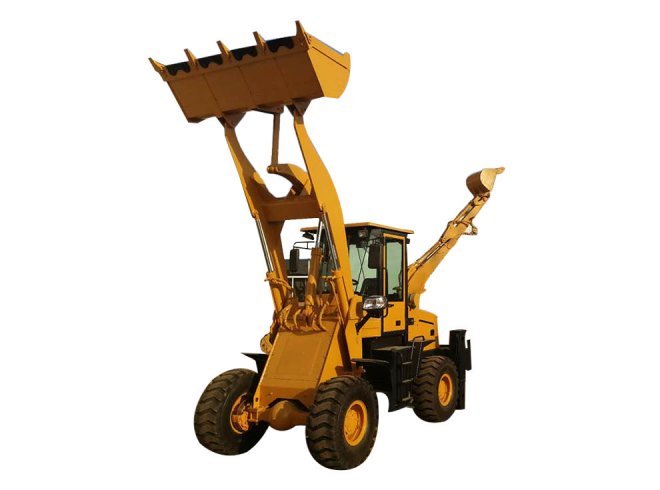

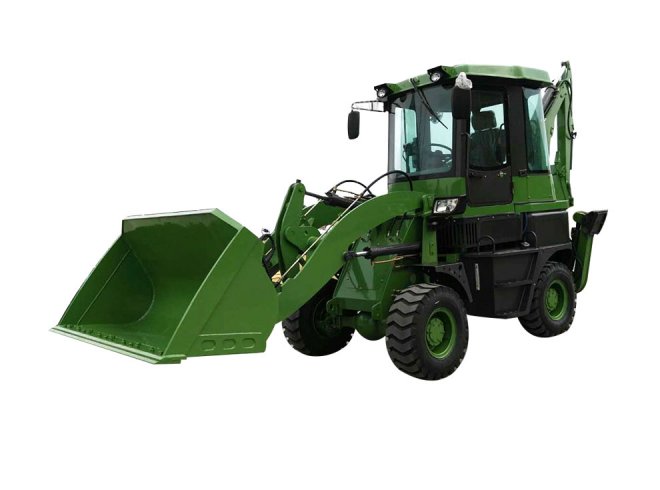

The loader and excavator is mainly used for afforestation,agriculture and animal husbandry construction. channel construction, sewer clean-up, mine cleaning and other capital construction operating environment.
Overall specification | Engine | ||||||||||
1 | Dimension (mm) | 5100*1350*2580 | 1 | Model | Yunnei/Yuchai | ||||||
2 | Wheel base (mm) | 1910 | 2 | Type | four-stroke | ||||||
3 | Tread (mm) | 1100 | 3 | Engine power(KW)/emission stage | 37kw/ tier 2 | ||||||
4 | Min ground clearance (mm) | 300 | 4 | Speed rate(r/min) | 2400 | ||||||
二 Performance parameter | 5 | Cylinder number-inner diameter | 4-90 | ||||||||
1 | Sytem pressure (MPa) | 16 | 五 Transmission system | ||||||||
2 | Operating weight(Kg) | 2000 | 1 | Gear box | Fixed axis power shift | ||||||
3 | Max Speed rate(Km/h) | 25 | 2 | Gear shift | Forward reverse 2 | ||||||
4 | Max climbing ability(°) | 25 | 3 | Hydrolic torque converter | ZL28F | ||||||
5 | Min turning radius(mm) | 3000 | 六 Steering system | ||||||||
三 Excavator parameter | 1 | Model | Hinged full-hydraulic steering | ||||||||
1 | Max digging depth(mm) | 1500 | 2 | Steering angle(°) | 33 | ||||||
2 | Discharge height(mm) | 1500 | 七 Axle | ||||||||
3 | Max digging radius(mm) | 2000 | 1 | Model | 130 | ||||||
4 | Bucket width(mm) | 350 | 八Tire | ||||||||
5 | Bucket volume(m³) | 0.06 | 1 | Size | 825-16/1000-16 | ||||||
6 | Max digging height(mm) | 2600 | 2 | Front tire pressure(KPa) | 250 | ||||||
7 | Max digging power(KN) | 25 | 3 | Rear tire pressure(KPa) | 250 | ||||||
8 | Rotary angle(°) | 180 | 4 | Driving braking | Oil brake drum type brake | ||||||
四Loader parameter | 5 | Parking braking | Hand brake | ||||||||
1 | Max discharge height(mm) | 2200 | 九Oil | ||||||||
2 | Max discharge distance(mm) | 800 | 1 | Fuel tank(L) | 30 | ||||||
3 | Bucket width(mm) | 1300 | 2 | Hydrolic oil(L) | 30 | ||||||
4 | Bbucket volume(m³) | 0.4 | 十Others | ||||||||
5 | Max lift height(mm) | 3000 | 1 | Drive type | 4X4 | ||||||
6 | Max breakout power(KN) | 28 | 2 | Variable speed type | Hydrolic | ||||||
7 | Total cycling time(S) | 12 | 3 | Brake distance(mm) | 3000 |
