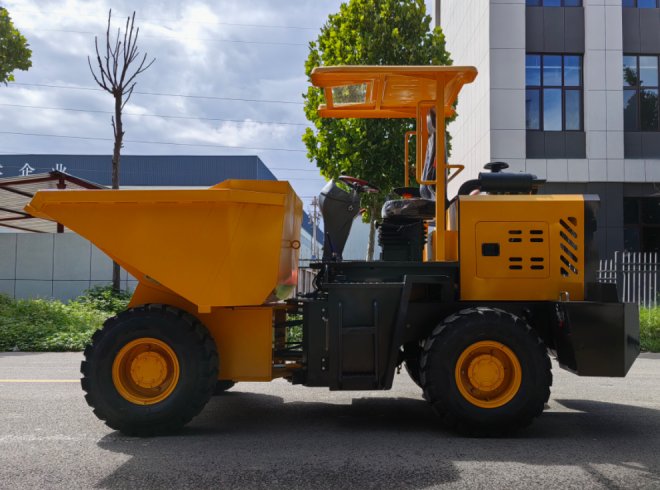

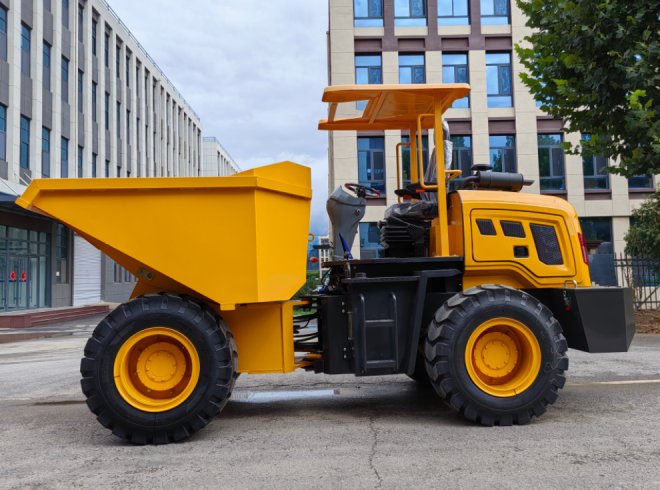

1.mining dumpers
2.reasonable structures,
3.convenient and fiexible manipulating,
4.strong and durable
Dumper Specifications | ||
Type | ||
Description | Unit | Specifications |
Contour size（L×W×H） | mm | 4100*1800*2650mm |
Operating weight | kg | 3000 |
Max gradeability | ° | 25 |
Engine Model | Yunnei | |
emission standard | Tier 2 | |
Rated power/Rated speed | kw/r/min | 55kw/2200r/min |
Tire | 23.5-16 | |
Tire pressure | Kpa | 350 |
Working pressure | MPa | 16 |
Bucket capacity | kg | 2000 |
Brake system | hydraulic | |
Speed rate | Km/h | 0-26 |
Min.turn radius | mm | 3500 |
Dumping height | mm | 300 |
Dumping reach | mm | 850 |
Transmission | hydraulic | |
