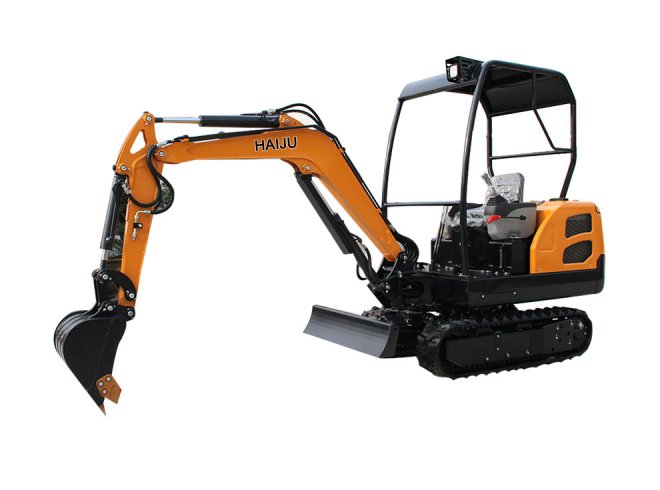

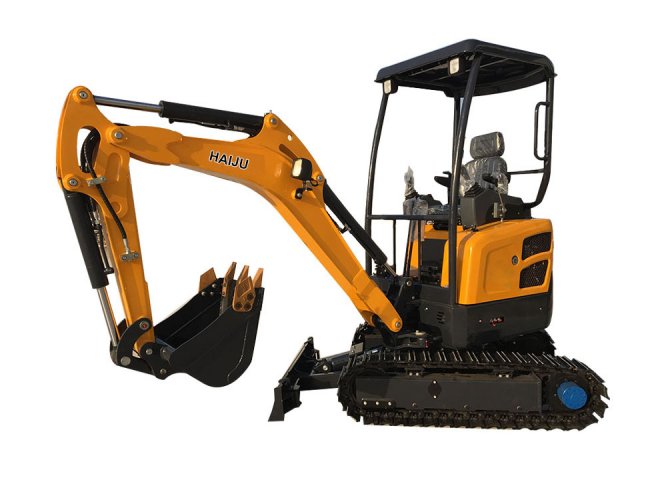

mini excavator is specially designed for small engineering, garden, farmland municipal engineering, etc., can also be used in amusement park, park. It is light and flexible, simple in design, easy to maintain, reliable and powerful.
Model | CT12 (Yanmar V70) | CT12 (Yanmar V74) | CT12 (Kubota) |
Operating weight | 1.2 | 1.2 | 1.2 |
Bucket capacity | 0.03 | 0.03 | 0.03 |
Engine model | YANMAR 3TNV70 | YANMAR 3TNV74F | D722-E4B-CBH-1 |
Rated power (kw/r/min) | 10.3/2200 | 11.2/2400 | 10.2/2500 |
Hydraulic pump model | C112-51A-01000A0 | C112-51A-01000A0 | C112-51A-01000A0 |
Max.flow (L/min) | 18.7 | 20.4 | 20.4 |
Working pressure (Mpa) | 18 | 18 | 18 |
Control valve model | C112-52A-01000A0 | C112-52A-01000A0 | C112-52A-01000A0 |
Swing motor model | C112-57A-01000A0 | C112-57A-01000A0 | C112-57A-01000A0 |
Travel motor model | C112-56A-01000A0 | C112-56A-01000A0 | C112-56A-01000A0 |
Fuel tank capacity (L) | 15 | 15 | 11.5 |
Hydraulic oil tank capacity (L) | 13 | 13 | 12.4 |
Travel speed (km/h) | 2.1 | 2.2 | 2.2 |
Swing speed (r/min) | 12 | 12 | 12 |
Max. climbing degree (%) | 58 | 58 | 58 |
Arm digging force | 6.2 | 6.2 | 6.2 |
Bucket digging force (KN) | 8 | 8 | 8 |
Average grounding pressure (Kpa) | 30 | 30 | 30 |
A-Overall length (mm) | 3053 | 3053 | 3053 |
B-Overall width (mm) | 850 | 850 | 850 |
C-Overall height (to top of boom)(mm) | 1035 | 1035 | 1035 |
D-Overall height (to top of cab)(mm) | 2588 | 2588 | 2588 |
E-Counterweight ground clearance(mm) | 404 | 404 | 404 |
F-Min. ground clearance (mm) | 120 | 120 | 120 |
G-Tail swing radius (mm) | 806 | 806 | 806 |
H-Track Ground length (mm) | 972 | 972 | 972 |
J-Track length (mm) | 1296 | 1296 | 1296 |
K-Track gauge (mm) | 670(870 after extension) | ||
L-Track width (mm) | 850-1050 | 850-1050 | 850-1050 |
M-Track shoe width (mm) | 180 | 180 | 180 |
N-Turntable width (mm) | 850 | 850 | 850 |
O-Max. digging height (mm) | 3018 | 3018 | 3018 |
P-Max. dumping height (mm) | 2039 | 2039 | 2039 |
Q-Max. digging depth (mm) | 1809 | 1809 | 1809 |
R-Max. vertical wall digging depth (mm) | - | - | - |
T-Max. digging reach (mm) | 3439 | 3439 | 3439 |
U-Max. digging reach at ground level (mm) | 3390 | 3390 | 3390 |
V-Min. swing radius (mm) | 1591 | 1591 | 1591 |
X-Distance between center of rotation and tail length (mm) | 806 | 806 | 806 |
Y-Track shoe thickness (mm) | - | - | - |
Z-Height of counterweight (mm) | 470 | 470 | 470 |
A1-Ground length (in transportion)(mm) | 1560 | 1560 | 1560 |
Arm length (mm) | 890 | 890 | 890 |
Boom length (mm) | 1500 | 1500 | 1500 |
Boom deflection angle left/right(°) | 50°/70° | 50°/70° | 50°/70° |
Max.pushing height/depth(mm) | 195/195 | 195/195 | 195/195 |
