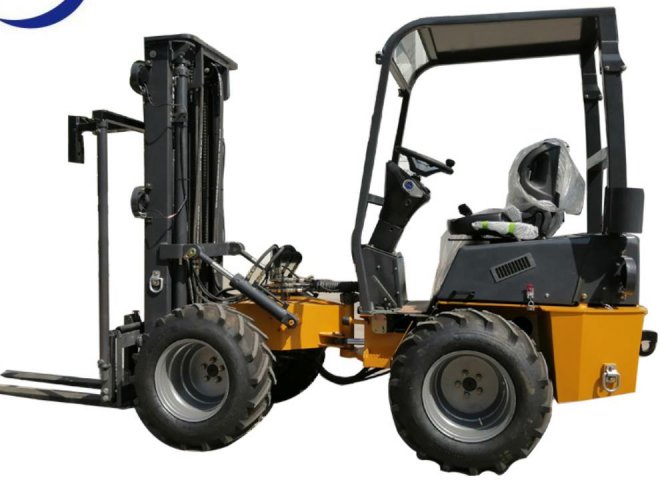

Our Beekeeper Forklift is special design for beekeeper working,it is good at for beehive load and unload in off road road conditions.we use the hydrostatic system and 4x4 drive,so it will give you good performance.
Item | Specification | Item | Specification |
ENGINE Model | Perkins /Kubota Euro V/ EPA4 | Lift capacity | 2 stage 3.5m |
transmission | Hydrostatic | Rated load | 1200kg-1400kg |
Drive type | 2 hydra-motors 4WD | Side slide | 200mm |
Hydraulic system | Made in Italy | Mast tilt angle | F16°/ R12° |
Max. breakout force | 20kN | Heat treated Forks | 1220mm |
Max. Grade ability | 40% | Lifting time | 8s |
Steering angle | 43°each side | Tyre specification | 29*12.5-15 |
Fuel tank | 60L | Min. turning radius | 2430mm |
Hydraulic oil tank | 55L | steering system Type | Articulated load-sensing hydraulic steering system |
Brake type | Hydraulic brake | Hydraulic working pressure | 18MPa |
Max. breakout force | 20kN | Max. Speed | 16km/h |
Max. Grade ability | 40% | Parking brake | Manual internal expanding shoe-type |
Steering angle | 43°each side | Gear shift forward and reverse | Electric |
Overall dimension (with forks) | 4000*1270*2320mm | Weight | 2100kg |
Lights | LED | Side shift | yes |

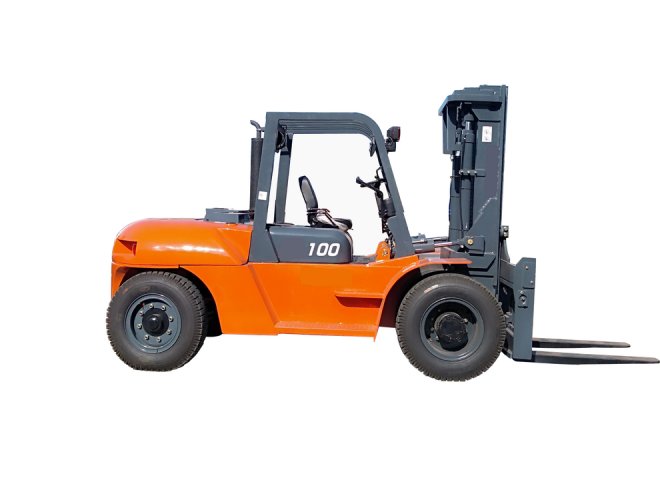

10000kg
5565x2260x2840mm
85KW/116HP
8000kg
5345x2260x2700mm
85KW/116HP
7000kg
4800x1995x2625mm
85KW/116HP
5000kg
4195x1380x2185mm
48KW/65HP
6000kg
4770x1995x2500mm
85KW/116HP
4000kg
1405x1400x2190mm
36.8KW/50HP
3500kg
4065x1225x2060mm
36.8KW/50HP
2000kg
3523x1160x2060mm
36.8KW/50HP
1500kg
3175x1070x1995mm
32KW/43HP
4000KG
50x122x1070mm
12V/80Ah
3500kg
50x122x1070mm
12V/80Ah
3000KG
45x122x1070MM
12V/80Ah
3000kg
3500x1700x2300mm
37KW/50HP
800-1000kg
3685x1230x2332mm
18.4KW/25HP
1200kg-1400kg
4000*1270*2320mm
18.4KW
1100
2040
4x12V/140
5600
3664
80/500
4950
3630
80/500
4200
3380
48/500
4050
3380
48/500
2790
3040
AC6.5
1730kg
2560mm
2x24V/150Ah
